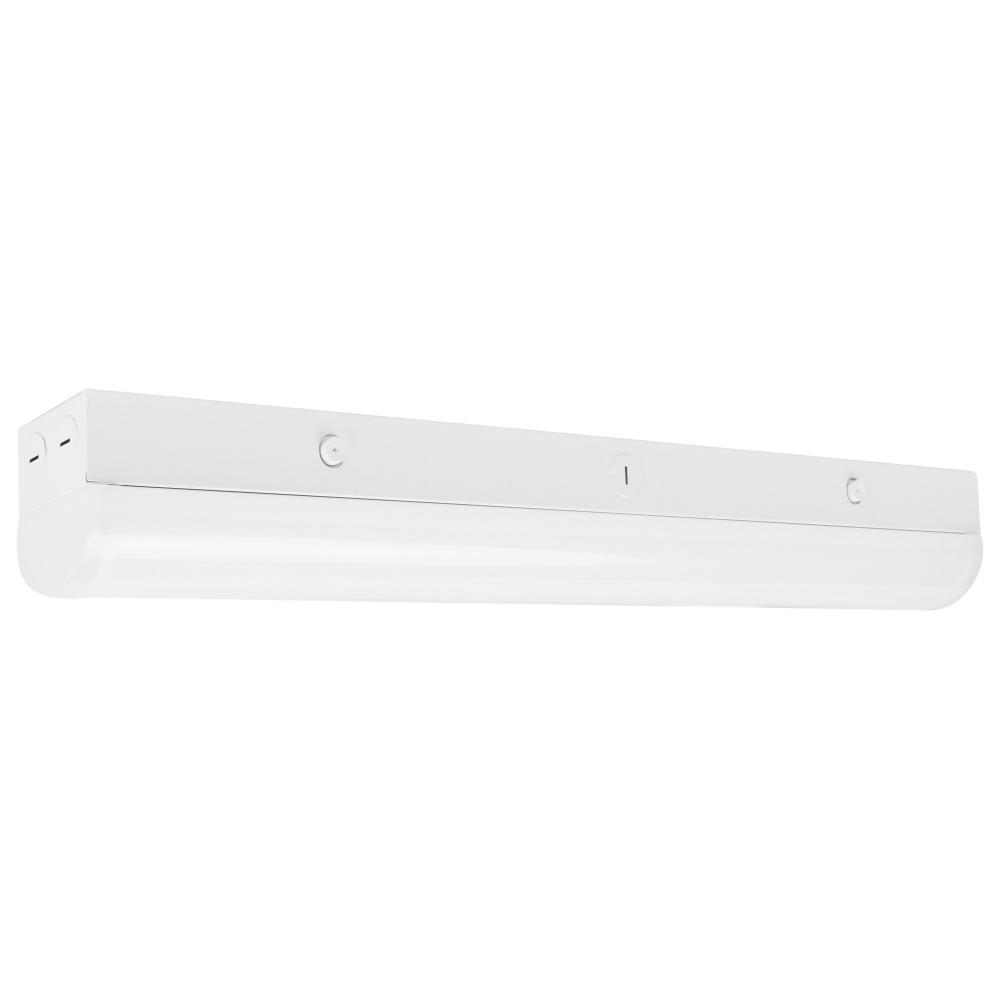

LED 2 ft.; Linear Strip Light; 20W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor (40JCVJF)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
455
68
/
/ 1
($455.68 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40JCVJF
Dimensions:
Height: 3.27"
Width: 2.95"
White
Availability:
- Manufacturer has 884 items available.
Recommended Items
Description
Details
Downloads
LED 2 ft.; Linear Strip Light; 20W; White Finish; CCT Selectable; 100-277V; Integrated EM & Sensor
Internal #:
40JCVJF
Category:
Undercabinet
Subcategory:
Strip Lights
Finish:
White
Option:
LED
, Prop 65
Lumens:
2601-3000
Kelvin:
5501-6000
Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Additional Info:
EM Mode 4W/90 Min run time. Other DLC Listings: S-MU6FZ4, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.31
Each Length:
26.1
Each Width:
5.2
Length:
24
Lumens:
2735L-2830L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.200-0.072A
ANSI Base:
Integrated
Battery Chemistry:
Lithium-ion (Li-ion)
Beam Angle:
120
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming
DLC Classification:
Premium; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires
Each Cube:
0.4171
Each Quantity:
1
Efficacy:
136.75/139.13/141.50 LPW
FCC Compliant:
Yes
Feature 1:
Flicker Free Driver
Feature 2:
CCT Selectable (3500K/4000K/5000K)
Feature 3:
Quick Release Feature for Easy Opening and Installation
Feature 4:
Integrated EM (4W/90 Minute Run Time)
Feature 5:
Integrated Microwave Sensor with Bi-level Dimming and On/Off Capabilities
Feature 6:
5 Year Warranty
Feature 7:
Multiple Mounting Options
Feature 8:
2KV Surge Protection
Finish Family:
White
Fixture shape:
Rectangle
Flicker Free:
Yes
Flr Equiv:
32W
Has Driver:
Yes
Has Emergency Battery:
Yes
HID Equiv:
100W-150W
Incandescent Equivalent:
100W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
SATCO NUVO's new 65-698 linear strip light, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT selectable technology. This 2 foot, 20 watt version will offer both function and
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Has Photocell
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's Strip Lighting, with it's rugged quality construction and ease of installation, just became an even better choice with the addition of CCT and wattage selectable technologies. Available in 2 foot and 4 foot versions, with a quick relea
Safety Listing:
cULus - Listed
SDS class:
LED_Fixture
Short Description:
2' LINEAR STRIP W/ EM & SENSOR
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
10.60%
Wattage Selectable:
No
Weight Lb.:
2.31
