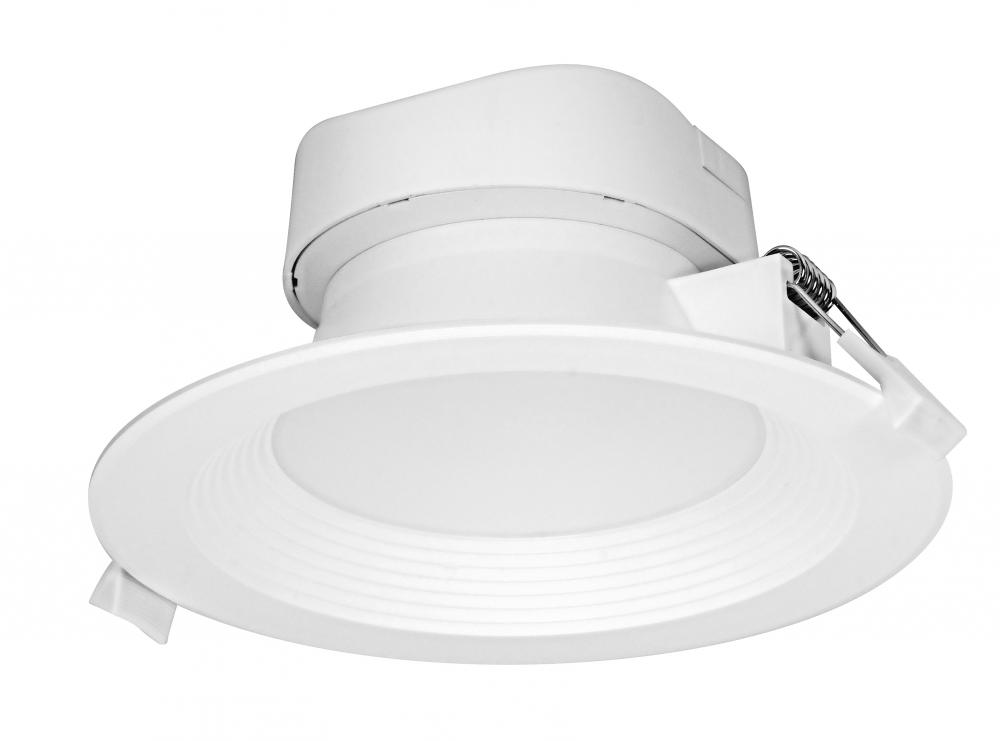

9 watt LED Direct Wire Downlight; 5-6 inch; 4000K; 120 volt; Dimmable (40JR41E)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
36
60
/
/ 1
($36.60 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40JR41E
Dimensions:
Height: 2.81"
Width: 6.69"
White
Availability:
- Manufacturer has 61 items available.
Recommended Items
Description
Details
Downloads
9 watt LED Direct Wire Downlight; 5-6 inch; 4000K; 120 volt; Dimmable
Internal #:
40JR41E
Category:
Recessed Ltg.
Subcategory:
Other Bulbs
, Other Recessed Ltg.
Finish:
White
Style:
Traditional
Option:
LED
, Prop 65
Lumens:
450-800
Kelvin:
4001-4500
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Avg Rated Hours:
40000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Cool White
Diameter:
6.69
Dimmable:
Yes-Dimmable
Each Height:
6.93
Each Length:
6.93
Each Width:
3.66
Lumens:
700L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.075A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
100
CA Prop-65:
Lead
CCT Selectable:
No
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
California T24 Listed
Ceiling Aperture:
5.875 in. Cutout
Clearance Height:
3.94
Connection:
Direct Wired
Country Of Origin:
China
CRI:
90+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
120V only
Dimming Type:
Phase cut
Each Cube:
0.1017
Each Quantity:
1
Efficacy:
77.78 LPW
FCC Compliant:
Yes
Feature 1:
Integrated J-Box for Direct Wire Installation
Feature 2:
Easy Install Spring Clips
Feature 3:
IC and Wet Location Rated
Feature 4:
No Recessed Can Required
Feature 5:
H:2.81 D:6.69
Finish Family:
White
Fixture shape:
Round
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
65W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Frost
Lens Material:
Plastic (PS)
Long Description:
SATCO NUVO's S39028 9-watt, LED 5-6 inch recessed downlight fixture is direct wired and offers cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. Di
Material:
Thermal Conductive Plastics & Aluminum
Max Drywall Thickness:
1-1/4 in.
Mounting Procedure:
Ceiling
Operating Frequency:
60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
0.95
Quantity In Pack:
1
R9 Value:
56
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's 9-watt, LED 5-6 inch recessed downlight fixture is direct wired and offers cool white light with a 100 degree beam spread. This LED downlight is an energy efficient lighting solution for retail spaces, offices, and drop ceilings. Dimmable
Safety Listing:
cETLus - Listed
SDS class:
LED_Lamp
Short Description:
9WLED/DW/RDL/5-6/40K/120V
Temperature (CCT):
4000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Trim Color:
White
Wattage Selectable:
No
Weight Lb.:
0.44
