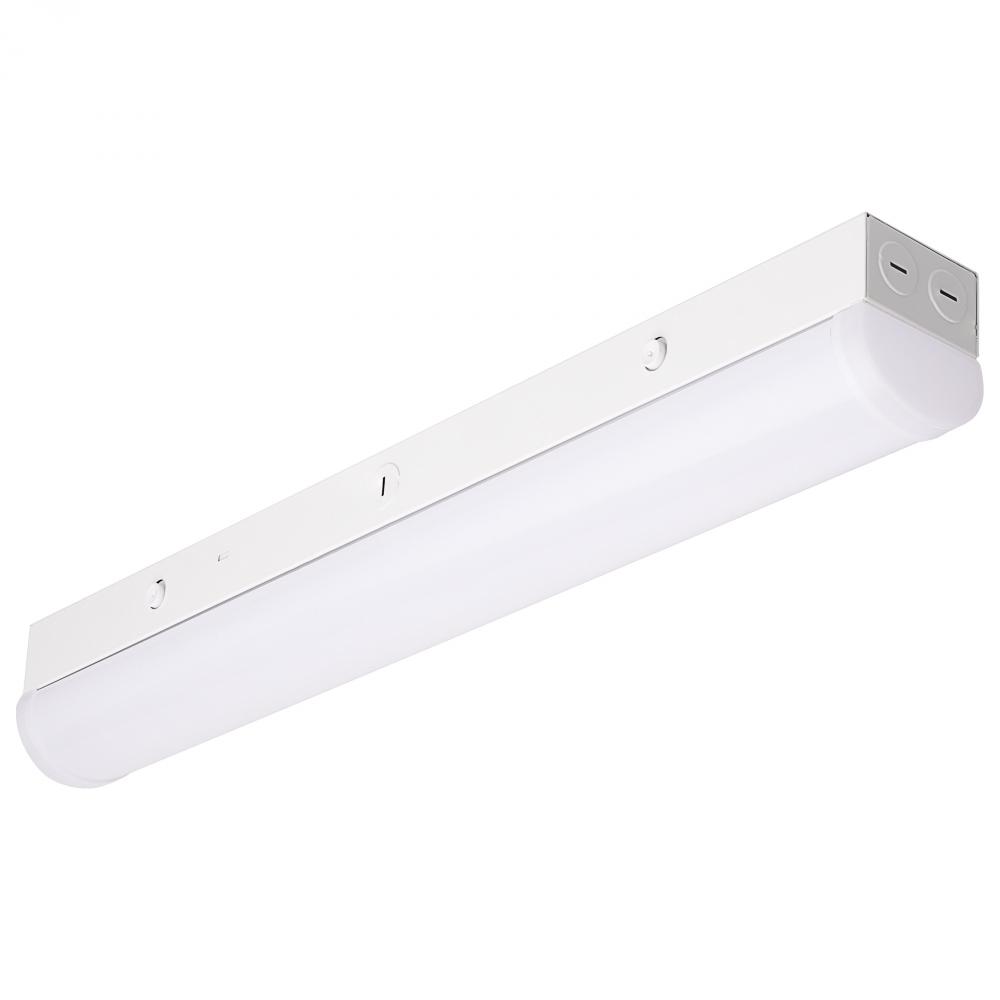

2 ft. LED; 20 Watt Linear Strip Light; CCT Selectable; White Finish; 120-277 Volt; Microwave Sensor (40JJZTU)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
192
27
/
/ 1
($192.27 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40JJZTU
Dimensions:
Height: 3.27"
Width: 2.95"
White
Availability:
- Manufacturer availability unknown.
Recommended Items
Description
Details
Downloads
2 ft. LED; 20 Watt Linear Strip Light; CCT Selectable; White Finish; 120-277 Volt; Microwave Sensor
Internal #:
40JJZTU
Category:
Undercabinet
Subcategory:
LED Undercabinet Lights
Option:
LED
, Prop 65
Lumens:
2601-3000
Kelvin:
5501-6000
Category:
Linear Strip
Sub Category:
Strip Fixture
Style:
Utility
Additional Info:
Other DLC Listing: S-Q129W0, Standard, Direct Linear Ambient Luminaires.
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Neutral White to Daylight
Dimmable:
Yes-Dimmable
Each Height:
5.31
Each Length:
26.1
Each Width:
5.2
Length:
24
Lumens:
2735L-2830L
Tariff Code:
9405.11.6010
Warranty:
5 Year Limited - Fixtures
Amps:
0.167-0.072A
ANSI Base:
Integrated
BAA Compliant:
No
Beam Angle:
120
B_U_G_Rating:
B1-U3-G1
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
T20 Exempt - Fixtures Not Regulated
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Connection:
Hardwire
Country Of Origin:
Vietnam
CRI:
80+
Dimmable Down To:
100 to 10 percent
Dimmable Function:
0-10V Dimming Only
DLC Classification:
Premium; Standard
DLC Primary Use:
Stairwell and Passageway Luminaires; Direct Linear Ambient Luminaires
Each Cube:
0.4171
Each Quantity:
1
Efficacy:
136.75/139.13/141.50 LPW
FCC Compliant:
Yes
Feature 1:
CCT Selectable
Feature 2:
Flicker Free Driver
Feature 3:
0-10V Dimmable
Feature 4:
Multiple Mounting Options
Feature 5:
DLC Premium
Feature 6:
Integrated Microwave Sensor
Feature 7:
Ultra Slim Design
Finish Family:
White
Flicker Free:
Yes
Has Driver:
Yes
HID Equiv:
100W-150W
Incandescent Equivalent:
150W-175W
Indoor Outdoor:
Indoor
IOT Enabled:
No
IP Rating:
IP20
JA8 Compliant:
No
Lens Finish:
White
Lens Material:
Polycarbonate (PC)
Long Description:
The SATCO NUVO 65-1700 LED 2-foot Linear Strip Fixture features an integrated microwave sensor for added energy efficiency and savings. With 3-CCT selectable options - 3500K, 4000K, 5000K - the user can tailor the lighting to their specific needs and prefe
Material:
Steel
Mounting Diameter:
4.75
Mounting Procedure:
Ceiling/Wall
NSF Approved:
No
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +60C (+140F)
Order In Multiples Of:
1
Pack Type:
Box
Photocell:
Bi-Level Microwave Sensor
Power Factor:
0.9
Quantity In Pack:
1
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO offers LED Linear Strip Fixtures in 2, 4, and 8-foot sizes. These fixtures provide flexibility with 3-CCT selectable options - 3500K, 4000K, and 5000K - allowing the user to tailor the lighting to their specific needs and preferences. Select mod
Safety Listing:
cULus - Certified
SDS class:
LED_Fixture
Sensor Type:
Microwave
Short Description:
2' LINEAR STRIP W/SENSOR
Sloped Ceiling Compatible:
Yes
Temperature (CCT):
3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
No
Total Harmonic Distortion:
13.61%
Wattage Selectable:
No
Weight Lb.:
1.78
