12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Square; (40JR307)
$45.35
Call For Price
Enlarge Image
Add to Cart
Description:

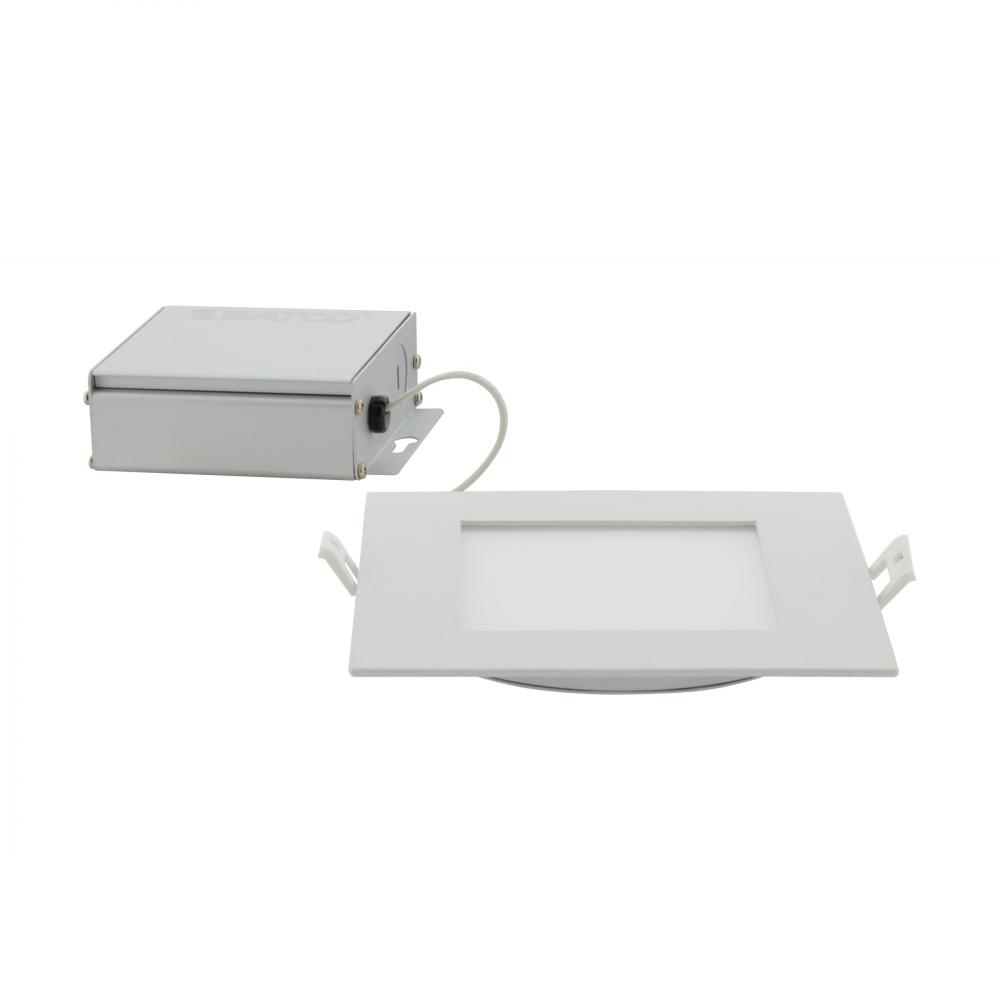

12 Watt; LED Direct Wire Downlight; Edge-lit; 6 inch; CCT Selectable; 120 volt; Dimmable; Square; Remote Driver
Availability:
  • Manufacturer has 1264 items available.
Required Components:

Optional Accessory:

Dimensions:
right arrow Height: 0.90"
right arrow Width: 6.69"
Additional Details:
right arrow Finish: White
right arrow Category: Recessed
right arrow Sub Category: Direct Wire
right arrow Style: Utility
right arrow Additional Info: Candlepower: 290
right arrow Avg Rated Hours: 50000
right arrow Bulb Shape1: Integrated LED
right arrow Bulb Type1: LED
right arrow Color Temperature: Warm to Cool White
right arrow Dimmable: Yes-Dimmable
right arrow Each Height: 7.13
right arrow Each Length: 8.74
right arrow Each Width: 2.13
right arrow Length: 6.69
right arrow Lumens: 750L
right arrow Tariff Code: 9405.10.8010
right arrow Warranty: 5 Year Limited - Fixtures
right arrow Air Tight: Yes
right arrow Amps: 0.100A
right arrow ANSI Base: Integrated
right arrow BAA Compliant: No
right arrow Beam Angle: 108
right arrow CA Prop-65: Lead
right arrow Can Size: 6 in.
right arrow Candle Power: 290
right arrow CCT Selectable: Yes
right arrow CEC: California T24 2016 - 2022 JA8 Listed
right arrow CEC Terse: Lawful for sale in California
right arrow CEC Web Text: California T24 Listed
right arrow Ceiling Aperture: 6.18 in. Cutout
right arrow Clearance Height: 2
right arrow Connection: Direct Wired
right arrow Country Of Origin: China
right arrow CRI: 90+
right arrow Dimmable Down To: 100 to 10 percent
right arrow Dimming Type: Reverse Phase or Phase Selectable
right arrow Each Cube: 0.07679999999999999
right arrow Each Quantity: 1
right arrow Efficacy: 62.50 LPW
right arrow FCC Compliant: Yes
right arrow Feature 1: ColorQuick CCT Selectable
right arrow Feature 2: 90 CRI
right arrow Feature 3: Wet Location Rated
right arrow Feature 4: Dimmable
right arrow Feature 5: IC Rated
right arrow Feature 6: Air Tight Rated
right arrow Feature 7: Title 24 Compliant
right arrow Feature 8: 108-Degree Beam Angle
right arrow Feature 9: 120V
right arrow Finish Family: White
right arrow Fixture shape: Square
right arrow Has Driver: Yes
right arrow IC Rated: Yes
right arrow Incandescent Equivalent: 65W
right arrow Indoor Outdoor: Indoor
right arrow Installation Notes: **If you purchase The 5W Emergency Driver (S8000) or the 10W Emergency Driver (S8002), you must also purchase the Emergency Driver Enclosure (80-973)
right arrow IP Rating: IP20
right arrow JA8 Compliant: Yes
right arrow Lens Finish: Frost
right arrow Lens Material: Poly methyl methacrylate (PMMA)
right arrow Long Description: SATCO NUVO's S11830 LED Slimfit Downlight is among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light.
right arrow Material: Aluminum
right arrow Max Drywall Thickness: 1/2 in.
right arrow Mounting Procedure: Ceiling
right arrow Operating Frequency: 60Hz
right arrow Operating Temp: -20C (-4F) to +45C (+113F)
right arrow Order In Multiples Of: 1
right arrow Pack Type: Box
right arrow Power Factor: >0.9
right arrow Quantity In Pack: 1
right arrow R9 Value: 65
right arrow Rec Spacing Between Fixtures: 4 ft. to 6 ft.
right arrow Replaceable Light Source: No
right arrow RoHS Compliant: Yes
right arrow Romance Copy: SATCO NUVO's LED Slimfit Downlights are among the most versatile lighting fixtures on the market. CCT Selectable at installation to personalize any space from kitchens, dens and offices to theater rooms and hotels with warm to cool dimmable light. A va
right arrow Safety Listing: cETLus - Listed
right arrow SDS class: LED_Lamp
right arrow Short Description: 12WLED/DW/EL/6/CCT-SEL/SQ/RD
right arrow Sloped Ceiling Compatible: No
right arrow Specification Notes: Lumens (L) vary with color temperature (K): 2700K 700L / 3000K 720L / 3500K 760L / 4000K 760L / 5000K 750L
right arrow Temperature (CCT): 2700K/3000K/3500K/4000K/5000K
right arrow Title 20 Compliant: Exempt
right arrow Title 24 Compliant: Yes
right arrow Total Harmonic Distortion: <20%
right arrow Trim Color: White
right arrow Trim Material: Aluminum
right arrow Wattage Selectable: No
right arrow Weight Lb.: 1.16
right arrow Standard Category: Recessed Ltg.
right arrow Standard Subcategory: Other Recessed Ltg.
right arrow Standard Finish: White
right arrow Standard Style: Traditional
right arrow Standard Option: LED , Prop 65 prop65.png
right arrow Standard Lumens: 450-800
right arrow Standard Kelvin: 4001-4500
