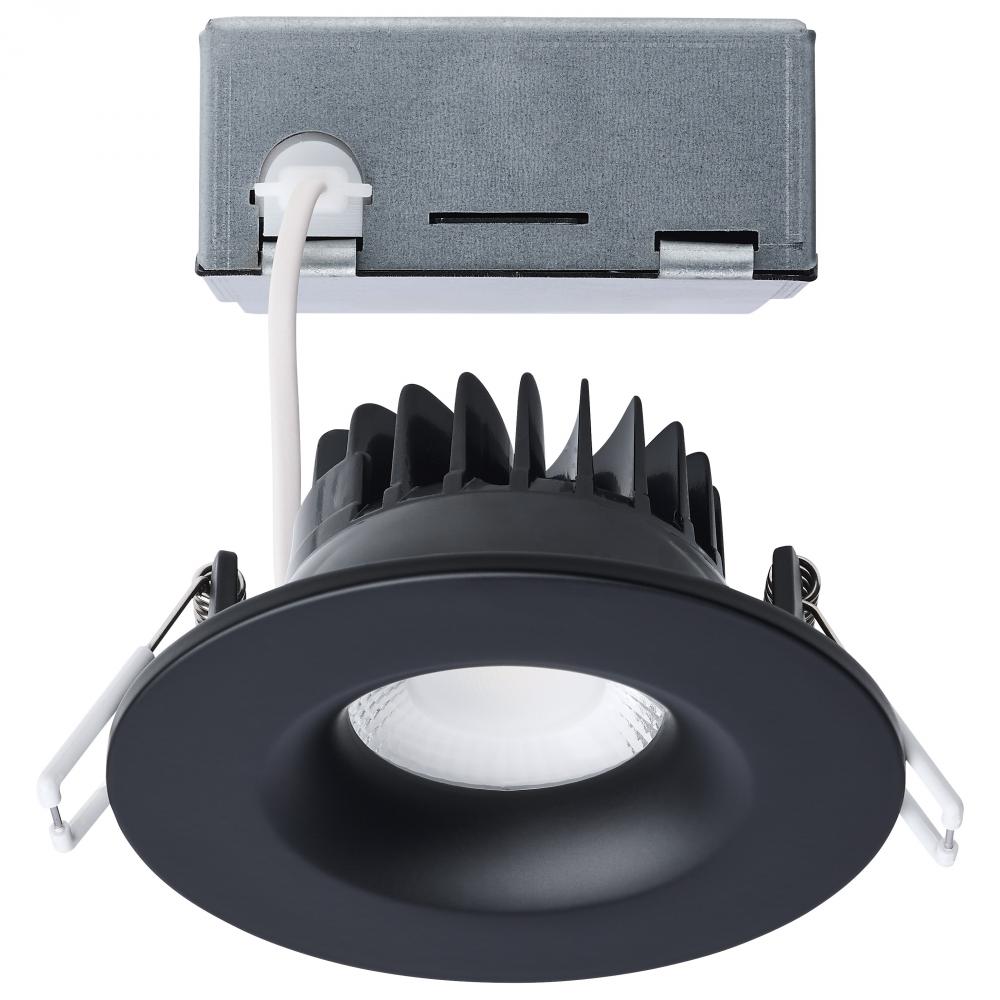

10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Round; Black Finish (40UWX5Z)
Image may not reflect selected features
No Image
Available
Available
BASE PRICE:
$
61
60
/
/ 1
($61.60 / 1)
WAS
$
Call for Price
+
-
Add To Cart
Add To Estimate
Add To Wishlist
Save To Compare
Item #:
40UWX5Z
Dimensions:
Height: 2.17"
Width: 4.38"
Black
Availability:
- Manufacturer has 66 items available.
Recommended Items
Description
Details
Downloads
10 Watt LED Direct Wire Downlight; Remote Driver; CCT Selectable; Dimmable; Round; Black Finish
Internal #:
40UWX5Z
Category:
Recessed Ltg.
Subcategory:
Other Recessed Ltg.
Option:
Energy Star
, LED
, Prop 65
Category:
Recessed
Sub Category:
Direct Wire
Style:
Utility
Avg Rated Hours:
50000
Bulb Shape1:
Integrated LED
Bulb Type1:
LED
Color Temperature:
Warm White to Natural Light
Diameter:
4.38
Dimmable:
Yes-Dimmable
Each Height:
5.51
Each Length:
5.31
Each Width:
3.74
Lumens:
840L
Tariff Code:
9405.11.8010
Warranty:
5 Year Limited - Fixtures
Air Tight:
Yes
Amps:
0.100A
ANSI Base:
Integrated
Beam Angle:
40
CA Prop-65:
Lead
CCT Selectable:
Yes
CEC:
California T24 2016 - 2022 JA8 Listed
CEC Terse:
Lawful for sale in California
CEC Web Text:
Lawful for sale
Ceiling Aperture:
3.5625 in. Cutout
Connection:
Direct Wired
Country Of Origin:
Vietnam
CRI:
90+
Dimmable Down To:
100 to 20 percent
Dimmable Function:
120V only
Dimming Type:
Phase cut
Each Cube:
0.0633
Each Quantity:
1
Efficacy:
84.00 LPW
ES Category:
Downlight Recessed
ES Unique ID:
ESID-3798636
FCC Compliant:
Yes
Feature 1:
5-CCT Selectable
Feature 10:
Energy Star
Feature 2:
90 CRI for Excellent Color Rendering
Feature 3:
Dimmable Down to 10%
Feature 4:
Wet Location Rated
Feature 5:
10W
Feature 6:
840 Lumens
Feature 7:
Airtight
Feature 8:
IC Rated
Feature 9:
Title 24
Finish Family:
Black
Fixture shape:
Round
Has Emergency Battery:
No
IC Rated:
Yes
Incandescent Equivalent:
75W
Indoor Outdoor:
Indoor
JA8 Compliant:
Yes
Lens Finish:
Clear
Lens Material:
Acrylic
Long Description:
SATCO NUVO's LED Architectural Downlights with Remote Driver offers an option for a small aperture aesthetic with the energy savings of LED technology. The 40-degree beam angle provides focused illumination while creating the ambiance of your choice wi
Material:
Aluminum
Mounting Diameter:
3.62
Mounting Height:
3.5
Mounting Procedure:
Ceiling
Operating Frequency:
50/60Hz
Operating Temp:
-20C (-4F) to +45C (+113F)
Order In Multiples Of:
1
Pack Type:
Box
Power Factor:
>0.9
Quantity In Pack:
1
R9 Value:
51
Replaceable Light Source:
No
RoHS Compliant:
Yes
Romance Copy:
SATCO NUVO's LED Architectural Downlights with Remote Driver offers an option for a small aperture aesthetic with the energy savings of LED technology. The 40-degree beam angle provides focused illumination while creating the ambiance of your choice wi
Safety Listing:
cETLus - Listed
SDS class:
LED_Fixture
Short Description:
10W/DW/DNL3/CCT/RND/RD/BK
Sloped Ceiling Compatible:
No
Temperature (CCT):
2700K/3000K/3500K/4000K/5000K
Title 20 Compliant:
Exempt
Title 24 Compliant:
Yes
Total Harmonic Distortion:
<30%
Trim Color:
Black
Trim Material:
Aluminum
Wattage Selectable:
No
Weight Lb.:
1.01
